Vibration Sensor And System Test Products
Founded in 2013, Agate Technology specializes in portable vibration technology for the calibration of a variety of sensors and accelerometers including Charge, IEPE, Prox-probes, Piezo-resistive, and 4-20ma. We have over 20 years of experience in this product field. Previous accomplishments include the development and design of the Hardy Hi-803 & Dynamic Instruments DI-811 shaker, as well as direct product involvement with the Data Signal 9855, Hi-813, and Hi-822 shakers. Both the AT-2030 and AT-2040 units are designed as next generation products with the focus being the most advanced shakers worldwide.
All equipment used at Agate technology is fully traceable to the National Institute of Standards & Technology (NIST).
Comparison from the Agate models AT-2030 & AT-2040
Applications

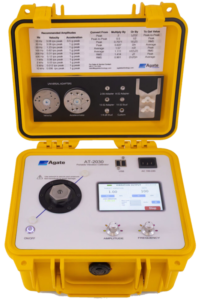

Agate AT-2030 Calibration Shaker
For customers interested in a portable calibration shaker table without sensor inputs, we offer the AT-2030.
The AT-2030 portable calibration shaker table is designed for simple accelerometer and vibration transducer calibration without the need for advanced features.
AT-2030 is a variable frequency, variable amplitude, battery operated portable shaker capable of calibrating accelerometers, transducers, and proximity probes. Applications are producing a known vibration signal in g’s, mils, or ips for sensor, wiring, instrumentation, and system checkout in vibration condition monitoring applications.
Features
– Dual USB port for data transfer or accessory power.
-Variable amplitude and frequency adjustment in manual mode.
-4.3″ TFT LCD colour touch screen LCD display, 480×272 resolution.
| Type: | Portable Calibration Shaker Table |
| Frequency Range: | 7-10 kHz |
| Vibration Signal: | Variable Frequency And Amplitude |
| Certifications Specs And Agency Requirements: | NIST Traceable Accredited NIST Certified NVLAP Laboratory Tested. EMC: CE Mark: Product Specific Standard LVD: CE Mark: Product Specific Standard RoHS |

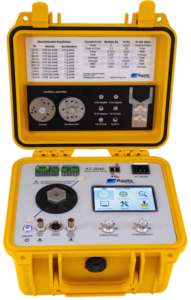

Agate AT-2040 Vibration Sensor Test Set
AT-2040 is the only portable vibration calibratorcapable of measuring sensitivity readings for Voltage, IEPE, Charge accelerometers, and 4-20mA transmitters without external equipment or add-on accessories.
AT-2040 is designed to address issues found in previous generation calibrators. Using customer input and new breakthroughs in technology, AT-2040 features a far superior design than any instrument of its kind.
Features
– Dual USB port for data transfer or accessory power.
-Variable amplitude and frequency adjustment in manual mode.
-Proximity probe simulator plugin – with test signals between 0 and -24 volts.
-4-20mA simulator plugin – with test signal between 4 and 20 milliamps.
-Input for sensitivity test of 4-20mA transducers and vibration transmitters. +24v power supply provided by connector.
-Proximity probe driver input for radial and axial measurement. -24v provided by connector.
-Reference adapter and mounting location for test tranducers.
-4.3″ TFT LCD colour touch screen LCD display, 480×272 resolution.
-BNC sensor input for sensitivity test, support charged, IEPE, proximity probes and velocity sensors.
-Conection for costomised sensor input/output.
-BNC sensor simulated output for a variety of transducer types using adjustable voltage and supply currents; included Charged, IEPE and Variable voltage supply.
Portable Vibration Calibrator AT-2040 is designed as an executive class calibrator for operators needing the absolute best equipment.
The AT-2040 Portable Vibration Calibrator features the ability to test all types of vibration sensors and transducers. While competing products may only feature velocity and voltage inputs, AT-2040 has inputs for nearly every type of sensor, including Charge (Piezoelectric) , 4-20mA, and Proximity Probe Sensitivity readings.
Featuring a built in charge amplifier and power supply, AT-2040 will provide built in positive 24 volt supply for 4-20mA input sensors and negative 24 volts for proximity probe drivers.
The built in power supply can also provide an adjustable 5 to 20 volts for 3 pin connectors needing external power. Accelerometers such as the Wilcoxon Research Model 991D Internally amplified, helicopter accelerometer, can connect 9 VDC power directly from the AT-2040.
In another example, the Bently Nevada 330400 and 330425 Accelerometer may use the proximity probe voltage source as a -24 connection, eliminating external equipment on 3 pin connections. This is all done through AT-2040’s superior design and requires absolutely no external meters or power supplies.
In addition to testing sensors, the AT-2040 can test and verify performance of vibration system meters and cabling by using a built in signal generator to simulate current or voltage at a range of 0.1Hz to 11kHz.
The simulation feature enables users to test equipment outside of the shakers normal operating range. Because the simulation mode is not restricted by the displacement of the shaker element and the accuracy of the reference accelerometer, simulation mode has a much larger amplitude and frequency range than a standard portable vibration calibrator. In simulation mode, you will also be simulating a perfect signal, making your system checks far more accurate.
This advanced system also features an automatic test mode to calibrate accelerometers without user interaction. Simply choose your sensor type and AT-2040 will sweep through the accelerometer frequency range while plotting its deviation on the color LCD screen. At the completion of your test the results will be saved in PDF format and can be exported to USB devices at any time.
| Type: | Portable Vibration Calibrator |
| Frequency Range: | Vibration Signal: 7-10 kHz Simulation Signal 0.1 – 11 kHz |
| Vibration Signal: | Variable Frequency And Amplitude |
| Test Types: | Manual Sensitivity, Sensor Simulation, Automatic Sweep And Certification. |
| Supported Sensor Input Types: | Accelerometer: Voltage IEPE Charge. 4-20ma Transmitters. Proximity Probes. |
| Sensor Simulation Output: | Voltage. (Variable Frequency And Amplitude) Charge Signal. (Variable Frequency And Amplitude) 4-20ma (adjustable). Proximity Probes (adjustable). |
| Agency Requirements: | NIST Traceable Accredited NIST Certified NVLAP Laboratory Tested. EMC: CE Mark: Product Specific Standard LVD: CE Mark: Product Specific Standard RoHS |
